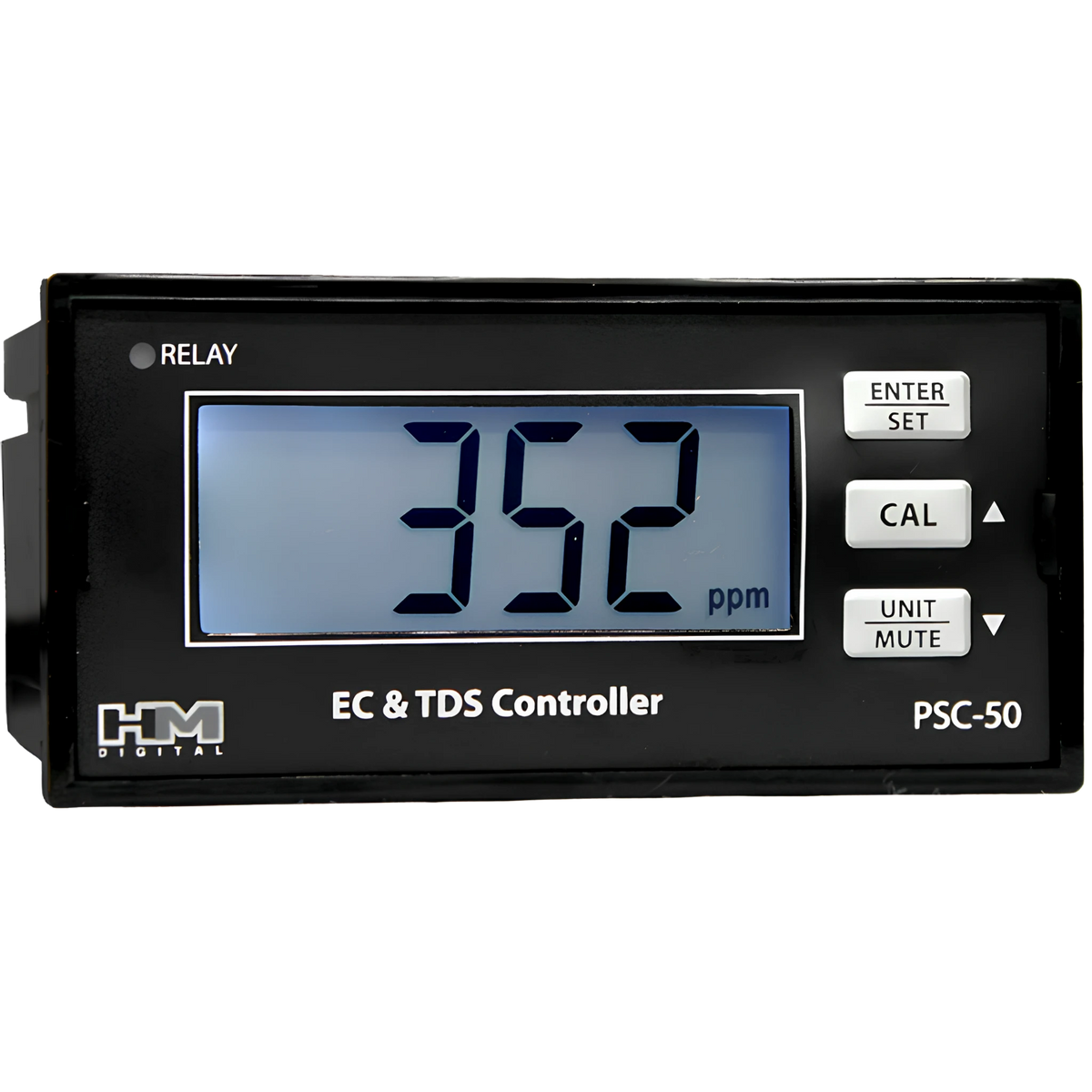

PSC-50: TDS/EC Controller
PSC-50: TDS/EC Controller
The PSC-50 is a TDS/EC controller designed to monitor and control TDS/EC levels in water treatment systems. An adjustable set point activates the alarm and relay when the measured level exceeds the configured limit.
Key Features
- TDS/EC monitoring and control
- Large, bright LED display
- Adjustable maximum set point
- Alarm indication when the set point is exceeded
- Relay control for external devices
- On-screen temperature display in °C/°F
- Includes SP-1-PSC sensor probe
Specifications
| EC Range | 0-9999 µS / 0-20.00 mS |
|---|---|
| TDS Range | 0-5000 ppm / 0-10.00 ppt |
| Accuracy | ±2% of the reading |
| Conversion Factor | NaCl (avg. 0.5) |
| Resolution | 0.1 (0-99.9); 1 (100-9999); 0.01 (mS & ppt) |
| ATC | Yes (1-60°C) |
| Calibration | Digital by push buttons |
| Set Point | Single point, controlled by on-screen up/down buttons |
| Relay Control | 1-point relay setting; trigger relay when value is exceeded |
| Relay Switching Electrical Specification | 5A, 250VAC |
| Alarm | Optional steady beep (set by user) |
| Display | Bright 2.3" LED |
| Cable | 3 m (9.8 ft.) shielded cable |
| Power Source | AC 110V / AC 220V |
| Dimensions | 9.6 × 4.8 × 10 cm (3.8 × 1.9 × 3.9 in.) |
| Monitor Weight | 261 g (9.2 oz.) |
