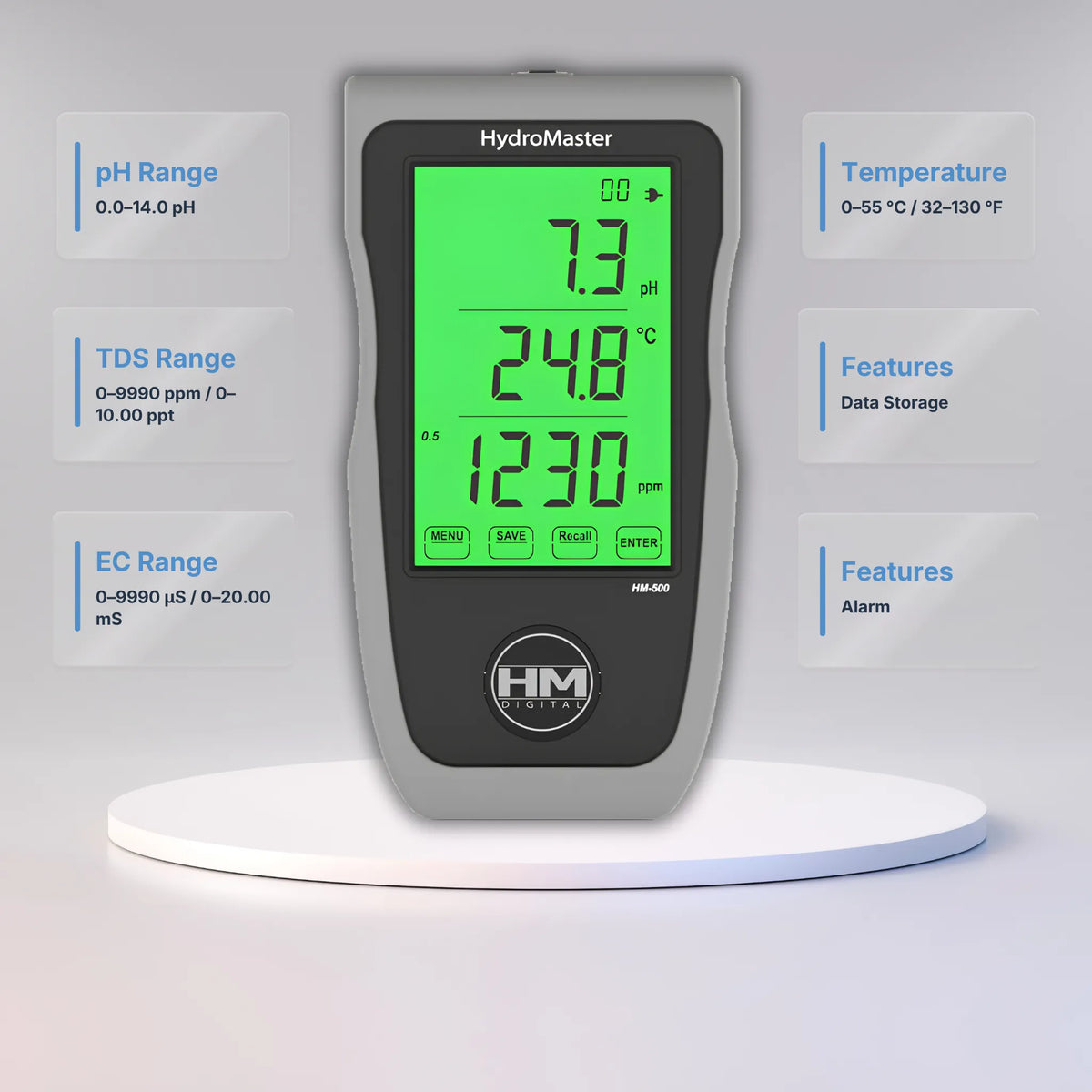

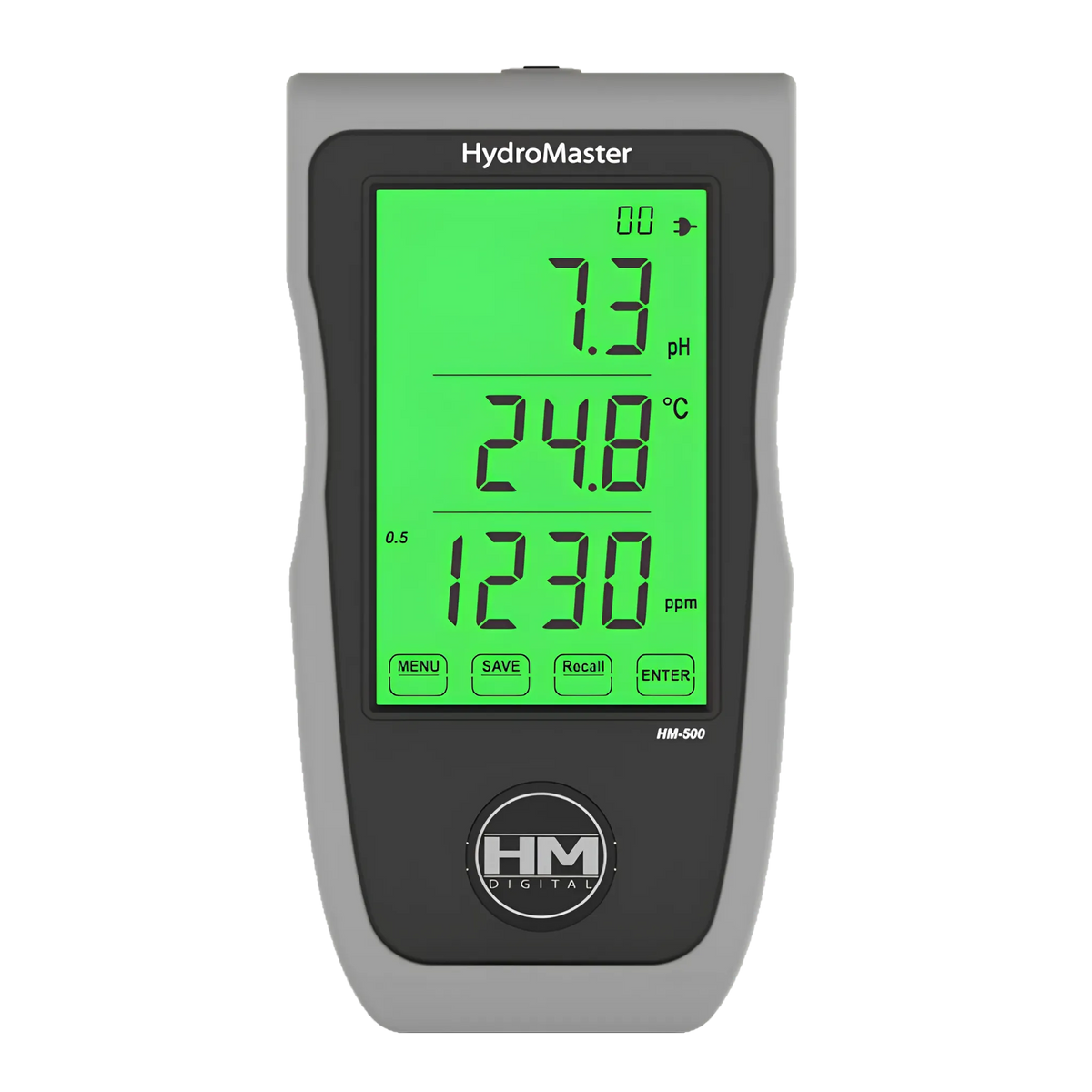

HM-500: Continuous pH/EC/TDS/Temperature Monitor
HM-500: Continuous pH/EC/TDS/Temperature Monitor
The HM Digital HydroMaster is a versatile multiparameter water quality monitor designed to measure pH, EC/TDS, dissolved oxygen (DO) and temperature. It can be wall mounted, used as a benchtop monitor or operated portably using its rechargeable battery.
Key Features
- Measures pH, EC, TDS, salinity, dissolved oxygen and temperature
- Measures dissolved oxygen in mg/L and %
- Multiple EC/TDS measurement scales
- Automatic Temperature Compensation (ATC)
- Three temperature coefficients
- Digital push-button calibration
- Large, easy-to-read LCD screen
- Displays three parameters simultaneously
- Replaceable SP-C2 conductivity sensor
- Replaceable SP-P5 pH sensor
- Factory calibrated for pH/EC/TDS/DO
- Rechargeable battery
- Suitable for wall-mounted, benchtop and portable use
- Includes power cable and pH calibration/storage solutions
Specifications
| pH Range | 0.0–14.0 pH |
|---|---|
| Temperature Range | 0–55 °C / 32–130 °F |
| TDS Range | 0–9990 ppm / 0–10.00 ppt |
| EC Range | 0–9990 µS / 0–20.00 mS |
| ATC Range | 0.0–60.0 °C |
| pH Accuracy | ±0.1 pH |
| Temperature Accuracy | ±1 °C / °F |
| EC/TDS Accuracy | ±2% |
| pH Resolution | 0.1 pH |
| Temperature Resolution | 0.1 °C / 0.1 °F |
| TDS Resolution | 1 ppm (0–99.9 ppm) / 1 ppm (100–999 ppm) / 10 ppm (1000–9990 ppm); 0.01 ppt (0.01–10.00 ppt) |
| EC Resolution | 0.1 µS (0–99.9 µS) / 10 µS (100–999 µS) / 10 µS (1000–9990 µS); 0.01 mS (0.01–20.00 mS) |
| Measurement Scales | pH; Temperature: °C / °F; TDS: ppm & ppt (NaCl 0.5 scale / 442™ 0.7 scale); EC: µS / mS |
| Data Storage | Up to 20 readings |
| Auto Shut-Off | After 5 minutes (while in battery mode) |
| Alarm | Adjustable Set Point |
| Power Source | AC 110 V–240 V / Rechargeable Lithium-Ion Battery |
| Service Environment | 0–50 °C / RH 80% |
| Display | LCD Touch Screen controls with Auto Backlit lighting |
| Probe | ABS with Electrodes Conductivity Sensor / Single Junction Ag/AgCl pH Sensor |
| Sensor Cable | 2 m (80 inch) shielded and coaxial cable |
| Dimensions | Approx. 8 × 4 × 1.4 inches / 20 × 11 × 3.6 cm |
| Weight | 15.2 oz (0.43 kg) for body / 5 oz (140 g) for two probes (without case) |
