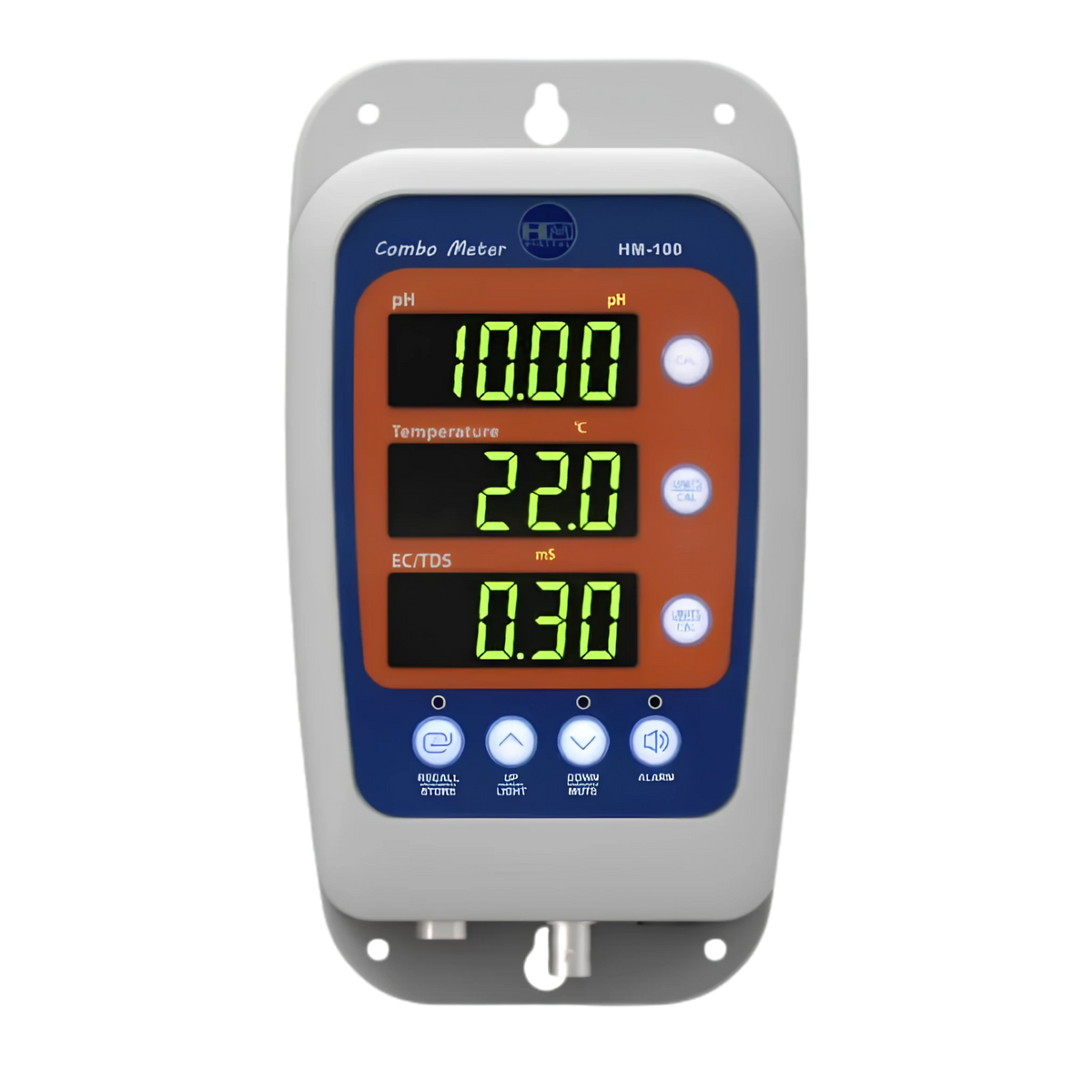

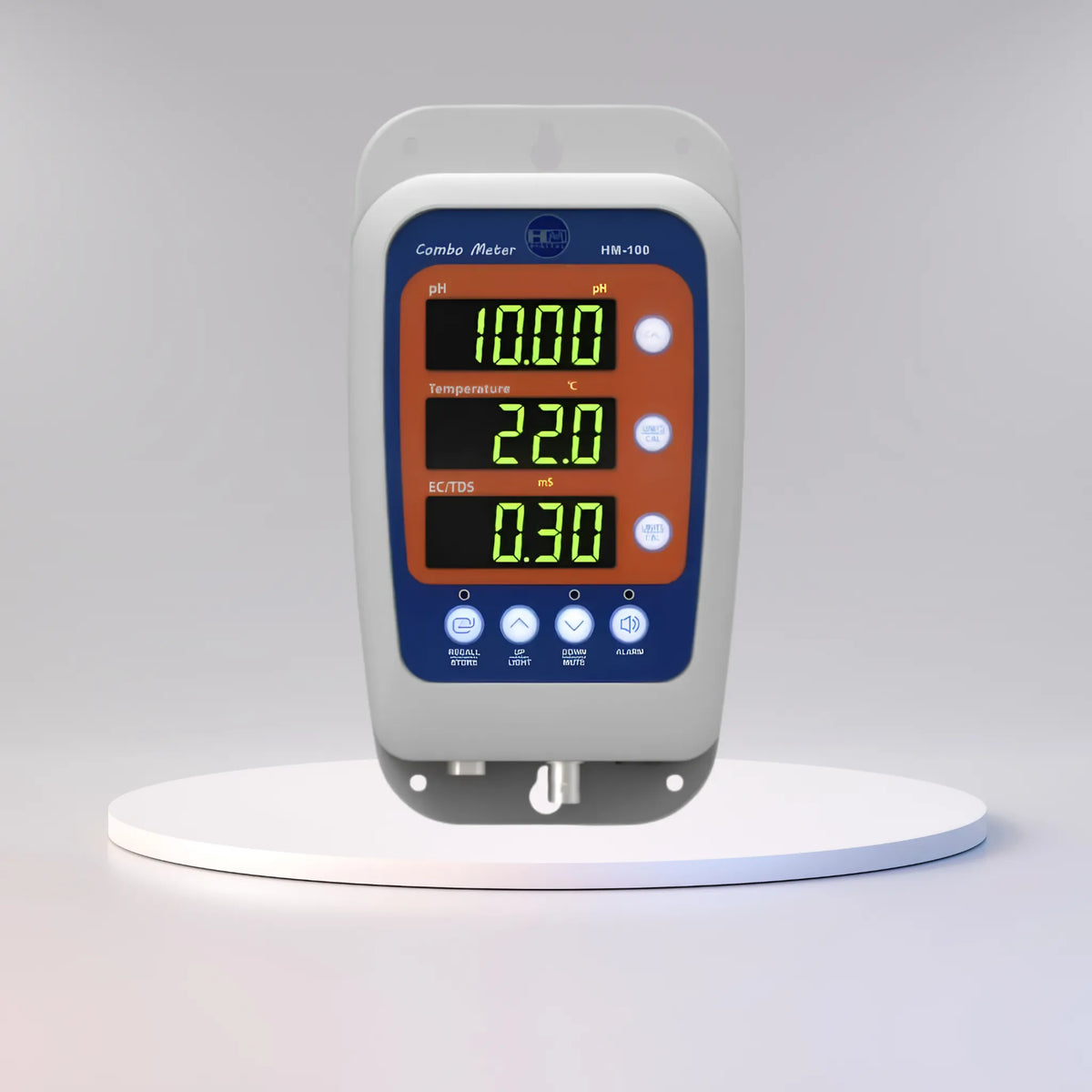

HM-100: Continuous pH/EC/TDS/Temperature Monitor
HM-100: Continuous pH/EC/TDS/Temperature Monitor
The HM-100 is a continuous multiparameter water quality monitor designed to measure pH, EC, TDS, salinity and temperature. It is suitable for continuous monitoring in water treatment, hydroponics, aquaculture, laboratories and other water quality applications.
Key Features
- Measures pH, EC, TDS, salinity and temperature
- Multiple pH, EC and TDS measurement scales
- Automatic Temperature Compensation (ATC)
- Three temperature coefficients
- Digital push-button calibration
- Stores up to 6 data values using data-hold functionality
- Large, easy-to-read LCD screen
- Displays three parameters simultaneously
- Replaceable SP-C2 conductivity sensor
- Replaceable SP-P5 pH sensor
- Factory calibrated for pH/EC/TDS
- Includes power cable, pH 4 and pH 7 calibration solutions and pH storage solution
Specifications
| pH Range | 0.1–14.0 pH |
|---|---|
| Temperature Range | 0.0–60.0 °C / 32.0–122.0 °F |
| TDS Range | 0–9990 ppm |
| EC Range | 0–10.00 mS |
| pH Resolution | 0.1 pH |
| Temperature Resolution | 0.1 °C / 0.1 °F |
| TDS Resolution | 1 ppm (0–999 ppm) / 10 ppm (1000–9990 ppm) |
| EC Resolution | 0.01 mS (0–10.00 mS) |
| pH Accuracy | ±0.1 pH |
| Temperature Accuracy | ±1 °C / °F |
| EC/TDS Accuracy | ±2% |
| Measurement Scales | pH; Temperature: °C / °F; TDS: ppm 0.5 scale (NaCl) / 0.7 scale (442™); EC: mS |
| ATC Range | 0.0–60.0 °C |
| Data Storage | Max. 6 data values |
| Alarm | LOW, HIGH. Assigned separately |
| Power | 5V/1A |
| Usage Environment | 0–50 °C / RH 80% |
| Sensor | Electroconductivity Sensor / Single Junction Ag/AgCl pH Sensor |
| Weight | 285 g (excl. sensors / accessories) |
